Tapping Machine
OVERVIEW

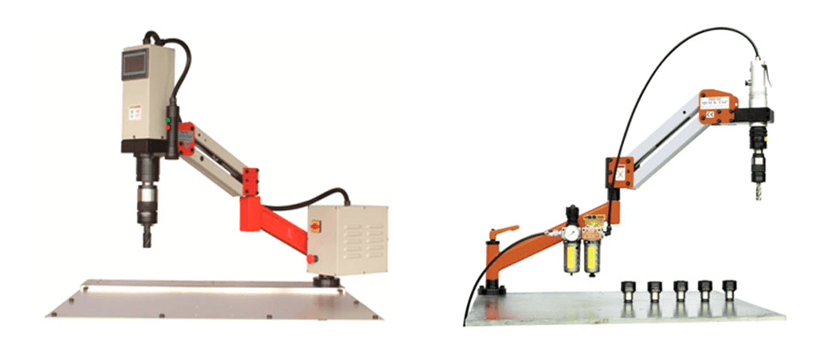

Rockwood is specialized in manufacturing Pneumatic, Hydraulic & Electric Tapping machines and relative accessories including tap holder and quick change tapping chuck in and around UAE. There are different models from Maho, which is available in all 3 versions (electric , pneumatic and hydraulic)on basis of the hole dia possible, the max reach , speed etc.
Our pneumatic version has different models that can tap hole dia ranging from M2 to M30. The electric version has models that can tap hole dia ranging from M3 to M32 and the hydraulic version has models that goes from M3 to M60. The models have different reach within a Rmin of 200 mm to Rmax of 1900 mm.
Please send us details of your job and our sales team will advise you the suitable model.

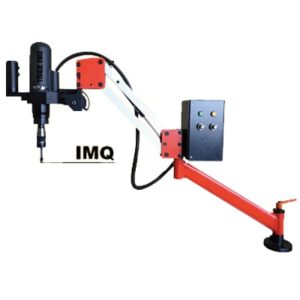

Technical Details
| SPINDLE | M3-M12 | M3-M16 | M3-M24 |
|---|---|---|---|
| SPEED(RPM) | 0-400 rpm | 0-300 rpm | 200/60 rpm |
| WORK RANGE | Rmax 950mm Rmin 100mm | ||
| VOLTAGE | 220 V Single-Phase | ||
| ELECTRIC MOTOR | 0.55 Kw | ||
| WEIGHT (KG) | 20/25 | 23/28 | 25.5/30.5 |

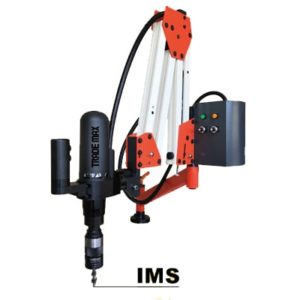

Technical Details
| SPINDLE | M3-M12 | M3-M16 | M3-M24 |
|---|---|---|---|
| SPEED(RPM) | 0-400 rpm | 0-300 rpm | 200/60 rpm |
| WORK RANGE | Rmax 1400mm Rmin 200mm | ||
| VOLTAGE | 220 V Single-Phase | ||
| ELECTRIC MOTOR | 0.55 Kw | ||
| WEIGHT (KG) | 22/27 | 25/30 | 27.5/32.5 |

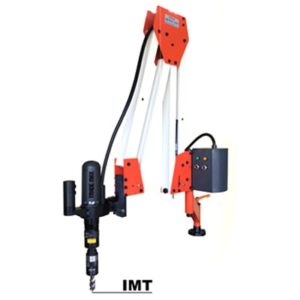

Technical Details
| SPINDLE | M3-M12 | M3-M16 | M3-M24 |
|---|---|---|---|
| SPEED(RPM) | 0-400 rpm | 0-300 rpm | 200/60 rpm |
| WORK RANGE | Rmax 1900mm Rmin 200mm | ||
| VOLTAGE | 220 V Single-Phase | ||
| ELECTRIC MOTOR | 0.55 Kw | ||
| WEIGHT (KG) | 23.5/28.5 | 26.5/31.5 | 37.5/42.5 |
Standard Accessories
- Electric Tapping spindle
- parallel arm
- Slanted arm
- Table mounting column
- Electric-Controlled Device
- Choose any six safety clutch collets
Options Accessories
- TM800035 –90 degree and Various Degree Tapping Device
- TM800030 –Auto Tap Lubricator System
- TM800032 –Cast Iron Work Cart
