OVERVIEW
Horizontal Bending Machines in UAE
Features
- Incorporates a CNC Control Panel featuring cutting-edge 4.0 technology for enhanced precision and ease of regulation.
- Facilitates various operations, including bending, folding, cutting, cold shaping, expanding and reducing tubes, notching, inlaying, and assembling with utmost precision and speed.

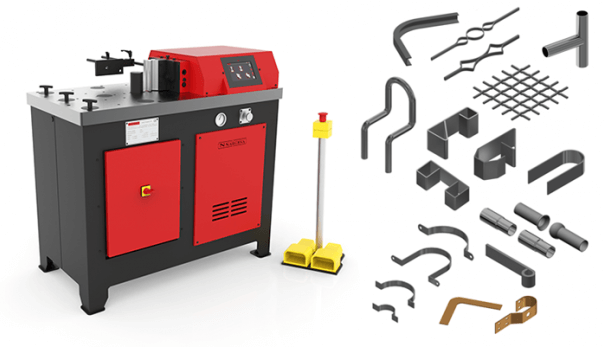

The Nargesa PP200CNC Horizontal Hydraulic Bending Machine stands out for its remarkable versatility, allowing efficient forging of various parts in diverse materials such as pipes, flat bars, profiles, and rods. Unlike conventional flat bar section bending machines, the machine’s folding operations enable complete bending of parts. Notably, it excels in pipe bending with a fixed radius of up to 150º, facilitating diverse operations like stretching and reducing pipe ends for fitting or welding.
This horizontal bending press doubles as a punching shears machine, capable of cutting, piercing, and punching flat bars or metal sheets. Many workshops leverage its capabilities to stretch and shape different profiles, offering a solution for bending profiles at various radii while keeping the ends straight, ideal for crafting handles and flanges. Additionally, the machine facilitates pipe notching for assembly at 90º, and it plays a pivotal role in cold forging processes for creating and forming various baluster shapes.
The hydraulic horizontal bending machines in UAE excels not only in robustness but also in versatility, easy handling, and integration with 4.0 Technology, marking it as an advanced solution for diverse working processes.
Specifications
- Operating modes include manual or automatic.
- Automatic springback correction is integrated.
- A piece counter is featured.
- Alarms are diagnosed and displayed on the screen.
- Automatic alerts for preventive maintenance are included.
- Remote connection capability is provided.
- The machine is equipped with a 7″ color touch screen.
- Safety is ensured with a double-acting hold pedal.
- The piston is mechanically guided.
- Pressure regulation is incorporated.
- The tooling support table measures 600×1170 mm.
- The working height is set at 950 mm.
- The engine has a power of 2.2 kW/3 HP at 1400 rpm.
- Electric tension is 230/400 V three-phased.
- Current intensity is 9/5 A.
- Hydraulic pressure ranges from 50 to 215 Kg/cm2.
- The hydraulic pump operates at 7.5 litres/minute.
- The tank has a capacity of 27 litres.
Advantages:
NEW Control Panel: Boasting a user-friendly interface, the latest 4.0 technology, and enhanced precision, this control panel makes operation a breeze.
Quick and Effortless Start-up: The machine arrives fully assembled; all that’s needed is to connect it to the power source and start it up.
Versatility at Your Fingertips: The Nargesa PP200 comes with an extensive catalog of optional tooling. (Refer to the bottom of the page for details on optional tooling and a sample video).
Convenient Tooling Fabrication: Customers or any skilled toolmaker can easily craft dies and punches.
Risk-Free Folding Operation: Unlike traditional press brakes, there’s no risk of damaging punches and dies when working with thick materials.
Precision in Folding: This horizontal bending press brake allows for the creation of folds in flat bars and sheets, achieving completely closed shapes. It excels in tasks that conventional press brakes find challenging.
Swift Tool Change: Switching between punches and dies typically takes no more than 30 seconds.
