    OVERVIEW

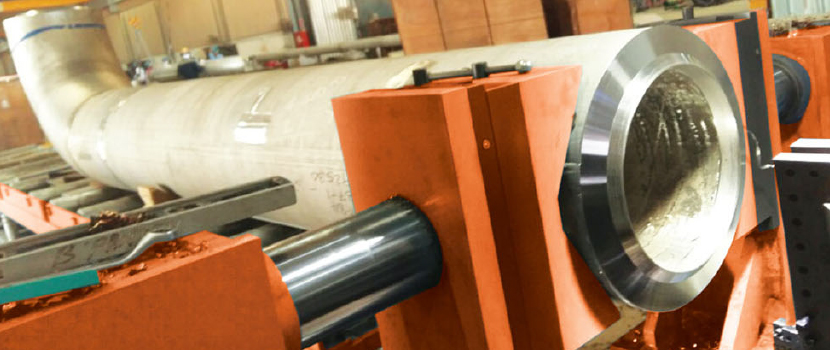

    Pipe bevelling machines in UAE

    A pipe bevelling machine is an essential tool in various industries, especially those involved in manufacturing, construction, and fabrication. This machine is designed to precisely trim and bevel the edges of pipes, providing a smooth and accurate finish necessary for welding or joining pipes together. By automating this process, it enhances efficiency, consistency, and safety in production lines. Pipe bevelling machines in UAE come in various sizes and configurations to accommodate different pipe diameters and materials, offering versatility for a wide range of applications. They play a crucial role in ensuring the integrity and quality of pipelines, structures, and assemblies across industries like oil and gas, construction, shipbuilding, and more.

    Manual Pipe Beveling Machine

    These compact beveling machines allow you to establish any degree V bevels on your pipe or tube and are super efficient and easy to setup and use in any shop.

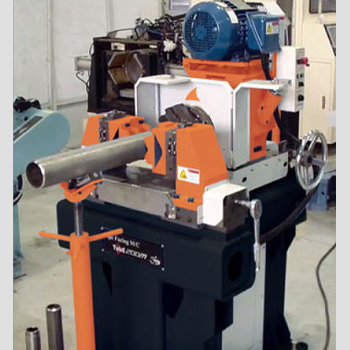

    Tube 200M
    Specifications
    Diameter : 1″ ~ 8″
    Thickness : Max. 7mm (1Pass)
    Spindle RPM : 300
    Spindle Motor : 4kw
    Control : Manual

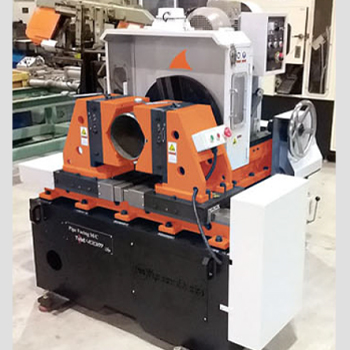

    Tube 400M
    Specifications
    Diameter : 3″ ~ 16″
    Thickness : Max. 15mm (1Pass)
    Spindle RPM : 200
    Spindle Motor : 5.5kw
    Control : Manual

    Automatic Pipe Bevelling Machine

    Our automatic machines are designed to create complex bevels on your pipe. You can easily create J. U, V and even C arid radius bevels. With the upgraded CNC controller you can even thread the end of your pipe or tube.

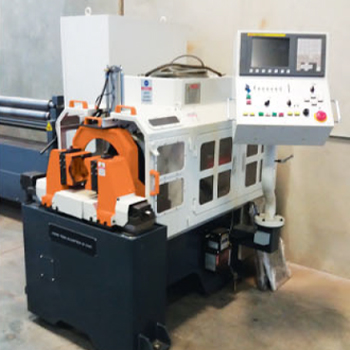

    Tube 200K/CNC
    Specifications
    Diameter : 1″ ~ 8″
    Thickness : Max. 20mm
    Spindle RPM : 300
    Spindle Motor : 5.5kw
    Control : KD/CNC

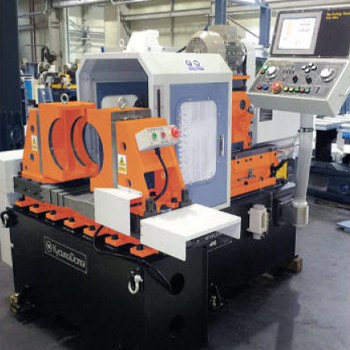

    Tube 400K/CNC
    Specifications
    Diameter : 3″ ~ 16″
    Thickness : Max. 40mm
    Spindle RPM : 200
    Spindle Motor : 5.5kw
    Control : KD/CNC

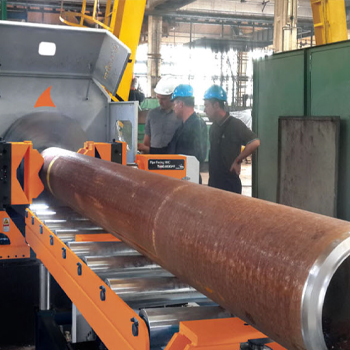

    Tube 800K/CNC
    Specifications
    Diameter : 6″ ~ 32″
    Thickness : Max. 100mm
    Spindle RPM : 150
    Spindle Motor : 7.5kw
    Control : KD/CNC

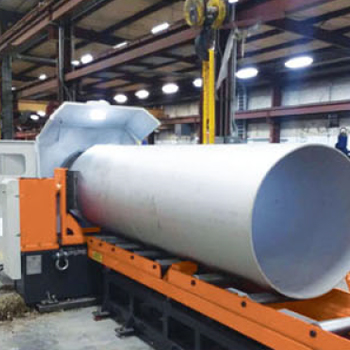

    Tube 1200K/CNC
    Specifications
    Diameter : 10″ ~ 48″
    Thickness : Max. 100mm
    Spindle RPM : 120
    Spindle Motor : 11 kw
    Control : KD/CNC

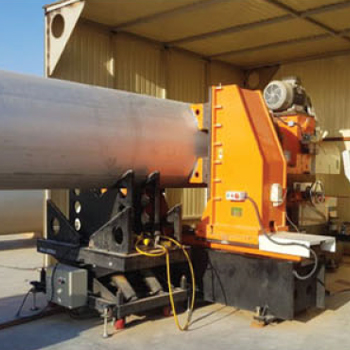

    Tube 1600K/CNC
    Specifications
    Diameter : 16″ ~ 64″
    Thickness : Max. 120mm
    Spindle RPM : 50
    Spindle Motor : 22kw
    Control : KD/CNC

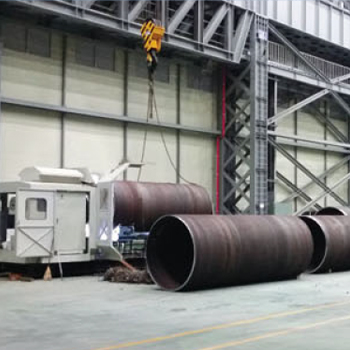

    Tube 2000K/CNC
    Specifications
    Diameter : 24″ ~ 78″
    Thickness : Max. 120mm
    Spindle RPM : 50
    Spindle Motor : 22kw
    Control : KD/CNC

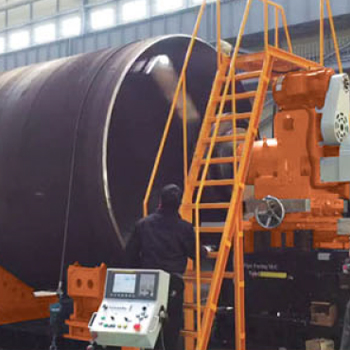

    Tube 3000K/CNC
    Specifications
    Diameter : 32″ ~ 120″
    Thickness : Max. 120mm
    Spindle RPM : 50
    Spindle Motor : 22kw
    Control : KD/CNC

    Elbow/Tee Bevelling Machine

    Our Elbow/Tee beveling machines are specifically made to create complex bevels on your elbow and tee parts and include our hydraulic turntable to make machining even more simple.

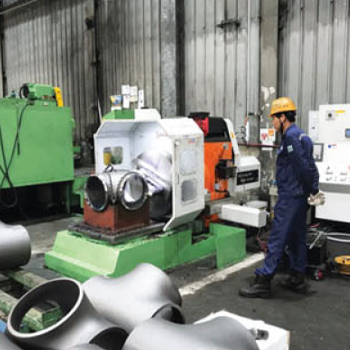

    Tube 600E

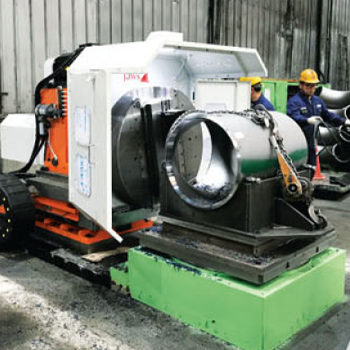

    Tube 900E

    Both side pipe Bevelling Machine

    Due to popular demand we have developed systems that will allow you to create complex bevels on both ends of your pipe simultaneously. Along with our custom feeding system this will greatly increase your efficiency and machining process.

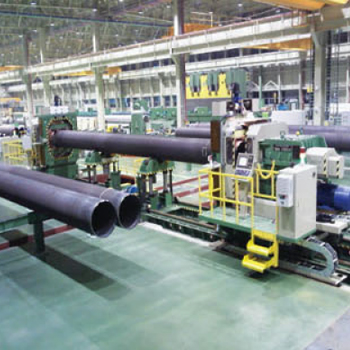

    Turning Type

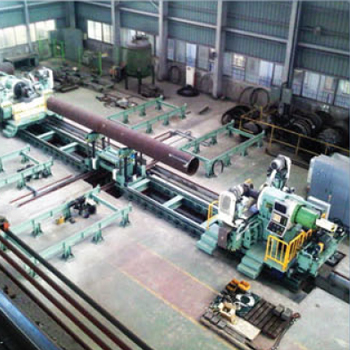

    Milling Type
    Applications
    • Independent production line
    • Cutting and beveling line
    • Double joint line
    • Bent pipe beveling
    • Flange beveling
    • Elbow beveling
    • Attached Vices
    • Round Jig
    • Adjustable loading support – loading 1.5T on
    • Hydraulic loading support – loading 4T on
    • Tube 0506CO – loading 5T on,6m
    • Tube 1006CO/1008CO – LOADING 10T on,6m/8m
    • Pipe turning device
    • Copying tool device
    • Tripod loading – 0.5T on
