Welding Table and Accessories
OVERVIEW
Complete access to the table top, multiple clamping surface, and standard clamps, are key to greater efficiency in the set-up and tear down of projects. The patent FIXTO Table design gives you the flexibility to adopt to each project, big or small. You will work more safely and more efficiently while maintaining accuracy and consistency.

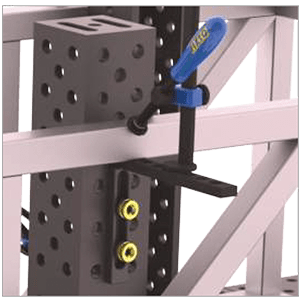

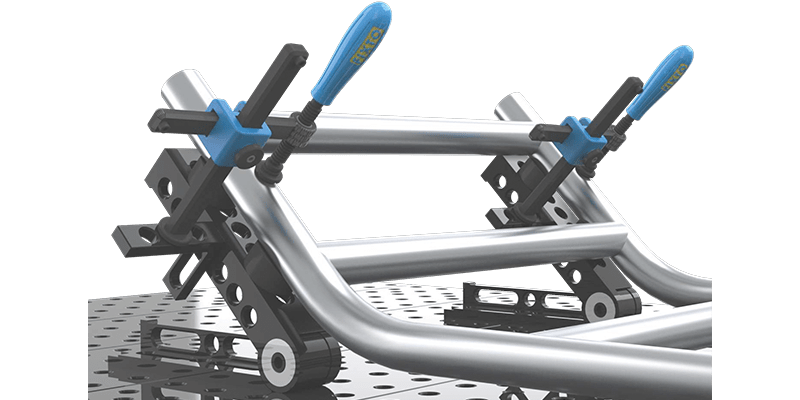

FIXTO Welding Table Fixture
- High rigid frame frame specially designed to withstand against heavy fabrication load with well machined surface
- Top surface plate with optimum toughness value ensuring zero crack formation against fatigue loading and durability of table
- Table top processed with Nitriding (a heat treatment process) offers anti corrosive, Anti spatter and wear resistive platform
- Material hardness maintained to HV450 to avoid plastic deformation and indentation of surface
- Well CNC machined holes and innovative design of clamping accessories combainely gives study fixturing with consistency
- FIXTO Modular welding table is better than cast iron tables as we can change, expand and join the top plates for flexibility of table size.
- FIXTO has placed its entire line of standard clamping products in a CAD library, which customers can use to save valuable time and increase fixture productivity.
- FIXTO provides after sales support with 3D modeling, Fixture example videos, Assembly drawing etc.

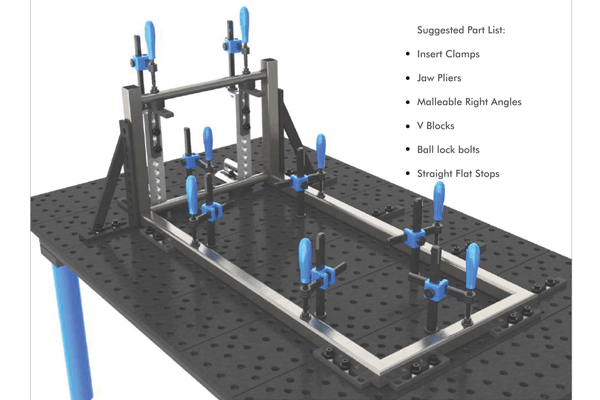

Bed Frame Welding Fixture

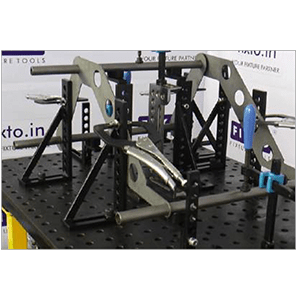

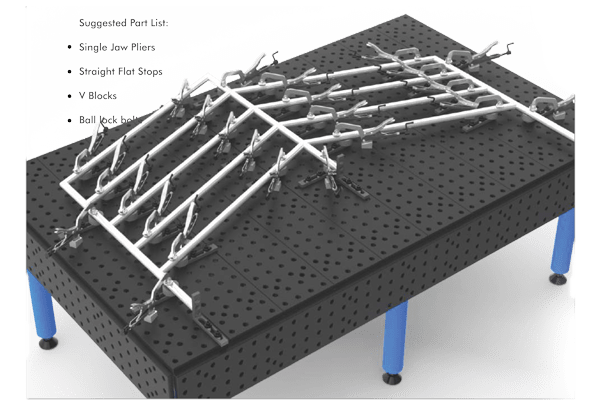

Stair Railing Fixture

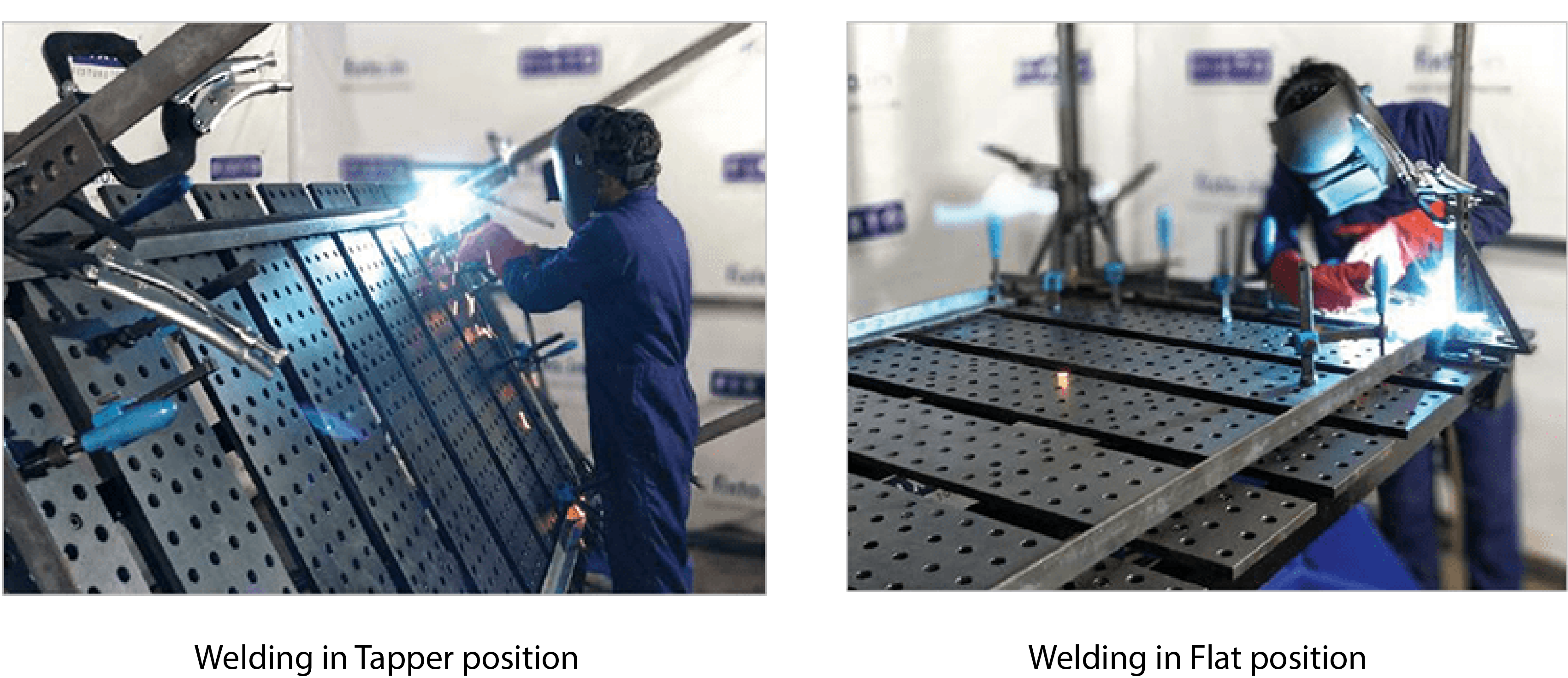

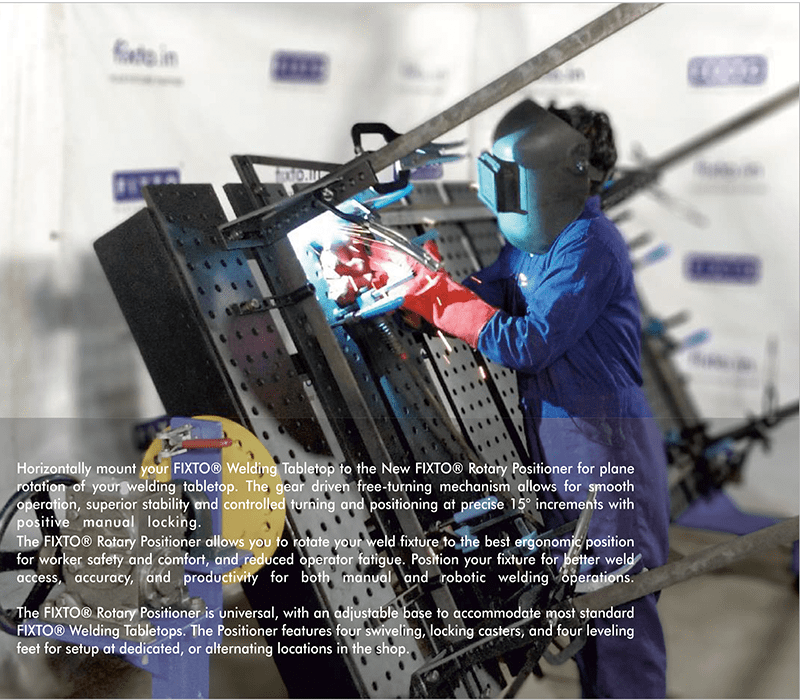

Rotary Positioner

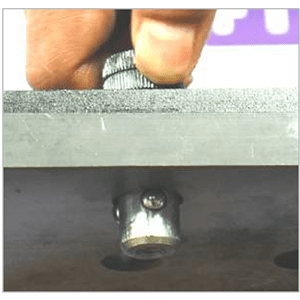

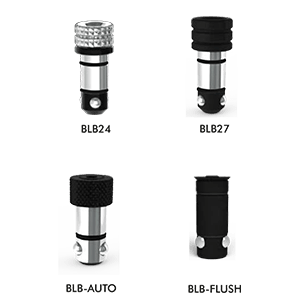

Ball Lock Bolts
Ball lock Bolts are a time-saving, efficient, and handy method of fastening fixture element to the FIXTO Tabletop, especially in tight spaces and hard to reach areas of the tabletop.The quick-setting Ball Lock Bolts provide accurate locating and clamping at the same time.



MODEL NO. | TYPE | DESCRIPTION | DIA | LENGTH |
---|---|---|---|---|
BLB24 | Fixed | For connecting two accessories together | 16 | 24 |
BLB27 | Fixed | For connecting plate & accessories together | 16 | 27 |
BLB-AUTO | Adjustable | Adjustable range for plate and accessories | 16 | 22-37 |
BLB-FLUSH | Fixed | For connecting plate & accessories together | 16 | 27 |
MODEL NO. | W | D | FITTING DIA |
---|---|---|---|
DC-200 | 150 | 200 | 16 |

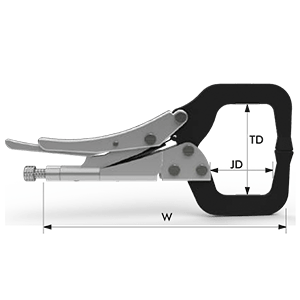

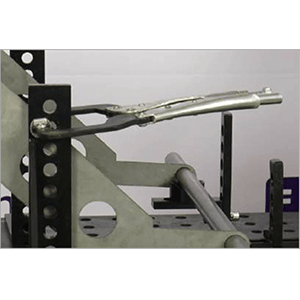

Jaw Pillers



This Clamp features wide arms that reach over or around most obstructions. These plier can easily clamp flat surface.
MODEL NO. | WIDTH | THROAT DEPTH | JAW DEPTH |
---|---|---|---|
PL-100 | 257 | 68 | 100 |
PL-200 | 387 | 200 | 100 |

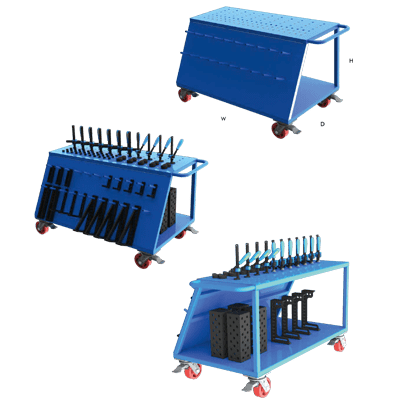

Tools Storage Trolley
FIXTO tool storage trolley offers sufficient space for your FIXTO accessories, your tools are handy, and you always keep track of them Big right angels are practically and safely stored in the inside space. Due tothe casters tool are quickly transported to different points to use.
MODEL NO. | W | D | H |
---|---|---|---|
TRL30 | 1200 | 680 | 700 |
