OVERVIEW

Fillet Horizontal Carriage

Our multi-functional welding carriage and digitally controlled welding auto carriage capable of horizontal and vertical welding helps your  professional welder in maintaining a safe and high quality weld. Auto Welding Carriage helps to automate welding jobs thus reducing time and manpower. We have wide range of  fillet and butt welding carriages with and without oscillating function  for horizontal and vertical welding is available to suit your job requirements and please get in touch with our sales team to get the suitable quote for right model.

CS-47 Multi Pass Fillet Carriage (Multi Joint)

  1. Fillet, Muti-pass welding where narrowed space of groove
  2. Constant speed and showing exact speed on FND by T.G control
  3. Easy mounting and dismounting by magnetic lever
  4. Crate time is adjustable and easy by operator.
  5. 2 angle regulators offer various angles to the welding area.

CS-24 Angle Dual Sides Fillet Carriage

  1. Fillet welding of dual sides.
  2. Travelling by roller along to top of Flang of angler, railess type and avoiding obstacles near to I-Bar.
  3. Constant speed and showing exact speed on FND by T.G control.
  4. Minimum angle size is 75mm and 25mm height of materials available (Special order available upon material sizes.)
  5. Crate time is adjustable and easy by operator.

CS-5D Stitch / Continuous Fillet Carriage

  1. Fillet both Stitch/contineou welding.
  2. The lenghts of stitich/welding can be adjustable easy and shown in the FND.
  3. Constant speed and showing exact speed on FND by T.G control.
  4. Easy position and dispostion by magnetic lever.
  5. Both direction(forward-back) weldings are applicable
  6. Crate time is adjustable and easy by operator.

CS-7D Micro MINI Distance Establish and Stitch / Continuous Carriage for Automatic Stitch/Continous Welding Application

  1. Fillet both Stitch/contineou welding with lighter weight carriage.
  2. The lenghts of stitich/welding can be adjustable easy and shown in the FND.
  3. Constant speed and showing exact speed on FND by T.G control.
  4. Easy position and dispostion by magnetic lever.
  5. Both direction(forward-back) weldings are applicable.
  6. Crate time is adjustable and easy by operator.

CS-4A Wall Traveling Fillet Weight Carriage

  1. Fillet with corner and wall travelling.
  2. Proximity sensor(5mm) provides automatic stop function at 5mm from end of steel plate.
  3. Constant speed and showing exact speed on FND by T.G control.
  4. The cariage can avoid obstacle stiffeners.
  5. Above 10mm width of bottom plate applicable.

CS-4D Wall Traveling Stitch / Continuous Fillet Carrige

  1. Fillet with corner and wall travelling.
  2. Proximity sensor(5mm) provides automatic stop function at 5mm from end of steel plate.
  3. Constant speed and showing exact speed on FND by T.G control.
  4. The cariage can avoid obstacle stiffeners.
  5. Above 10mm width of bottom plate applicable.
  6. Fillet welding carriage for Stitch/Continuous.

CS-23 I-Bar Dual Slide Fillet Carriage

  1. Fillet welding with dual sides.
  2. Travelling along to top of I-bar, railess type and avoiding obstacles near to I-Bar.
  3. 10-20mm tickness and 20-350mm height of materials applicable. (Special order available upon material sizes)
  4. Constant speed and showing exact speed on FND by T.G control.
  5. 5. Crate time is adjustable and easy by operator.

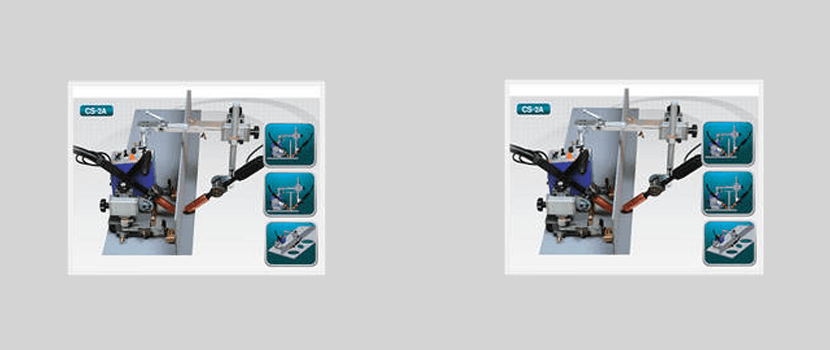

CS-2A Dual Sides Fillet Carriage

  1. Fillet, dual sides welding.
  2. Constant speed and showing exact speed on FND by T.G control.
  3. Easy mounting and dismounting by magnetic lever.
  4. Crate time is adjustable and easy by operator.Guide arm height is adjustable upon heights of weld materials and mutipurpose use upon various materials.

CS-5A Fillet Weight Carriage with lever

  1. Fillet, mutipurpose use.
  2. Constant speed and showing exact speed on FND by T.G control.
  3. Easy mounting and dismounting by magnetic lever.
  4. Both direction(forward-back) weldings are applicable.
  5. Crate time is adjustable and easy by operator.

CS-7A Fillet Lighter Weight Carriage with lever

  1. Fillet, lighter weight and samller sized, transportation is easy.
  2. Constant speed and showing exact speed on FND by T.G control.
  3. Easy mounting and dismounting by magnetic lever.
  4. Both direction(forward-back) weldings are applicable.
  5. Crate time is adjustable and easy by operator.

CS-7 Fillet Lighter Weight Carriage

  1. Fillet, mutipurpose use.
  2. Constant speed and showing exact speed on FND by T.G control
  3. Both direction(forward-back) weldings are applicable
  4. Crate time is adjustable and easy by operator.
