    OVERVIEW

    Laser Cleaning and Rust Removal Machines UAE

    1. Instruction:

    Laser cleaning machine is a new generation of high-tech equipment for surface cleaning. Stainless steel tank cleaning machines in UAE are Easy to install, operate and automate. The operation is simple, the power is turned on, and the equipment is turned on to perform cleaning without chemicals, media, dust, and water. It can automatically focus, clean with curved surfaces, and has the advantages of high cleanliness. It can remove resin, grease, stains, dirt, rust, coating, plating, paint. No damage to the part matrix, no consumables, energy saving and environmental protection, achieving higher cleanliness cleaning effect and lower overall cost production benefits. Use and experience the quality of Laser Cleaning Machine In UAE for automatically focus, clean with curved surfaces, and has the advantages of high cleanliness.

    Configuration

    Mode of operation: Handheld/Automated Air cooling system
    Scanning range (length * width) Single axis:5mm~120mm
    Scanning frequency 10Hz~300Hz
    Field lens focal length (mm) 160mm (optional 100mm~500mm)
    Depth of focus max 15mm

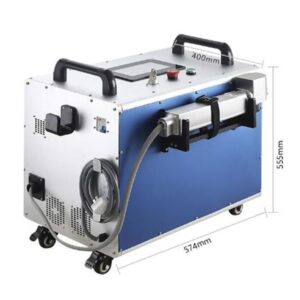

    Size 800mm×650mm×370mm?0.2 ???
    Weight 56kg
    Weight of cleaning head (including isolator) about 2Kg
    Power supply voltage Single phase 220V±10%, 50/60Hz AC

    2. Parameter:

    POWER:100W
    LASER TYPE:Pulse Fiber Laser Generator
    WAVELENGTH1064nm
    MAXIMUM MARKING LINE150mm
    GROSS POWER0.5kwH
    WARRANTY2 Year
    PULSE ENERGY1.5mJ
    PEAK POWER15kW
    HEAD WEIGHTStandard head:1.8kg, Anti-shake head:2.0kg
    SCAN WIDTH5mm-120mm (Customized)Continuously Adjustable
    COOLINGAir Cooling
    CLEANING PAINT/RUST8.0m2/h
    CLEANING OIL9.0m2/h
    TITANIUM ALLOY/STAINLESS STEEL OXIDE8.0m2/h
    CLEANING ALUMINUM ALLOY OXIDE FILM6.0m2/h
    highest-quality-full-machine-self-made-rate-laser-cleaning-machines-in-dubai-uae-Surface-Cleaning-and-Polishing-Machines-in-UAE
    laser-cleaning-control-rust-removal-machine-in-uae-designed-with-physical-chip-Surface-Cleaning-and-Polishing-Machines-in-UAE

    3. Product features

    1) Laser Cleaning control

    Using a cleaning control system developed by ourselves for many years, the cleaning card is designed with a physical chip, and the embedded touch control system is the latest dual-core high-speed and added anti-surge and power-off backup functions. It has been highly evaluated in the current market. The overall performance is smooth operation, stable performance, and its efficiency and functions are almost the same as those of international
    mainstream equipment.

    2) Full machine self-made rate

    Except that the laser uses a well-known manufacturer, the connector and power supply are all certified by safety regulations. The other control systems, galvanometers, and the whole machine are all produced by themselves to ensure the highest quality of the whole machine. Each machine can reach more than 65% of self-made rate.

    4. Application cases

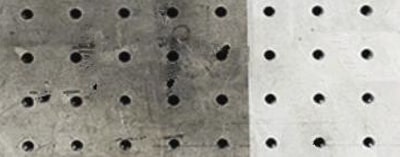

    1) Carbon steel plate derusting

    Sample: Carbon steel plate
    Material: carbon structural steel
    Cleaning efficiency: 400mm2/s
    Cleaning effect: the rust layer is removed cleanly without residue, and the surface is not damaged

    carbon-structural-steel-carbon-steel-plate-derusting-in-dubai-uae-Laser-Cleaning-and-Rust-Removal-Machines-UAE

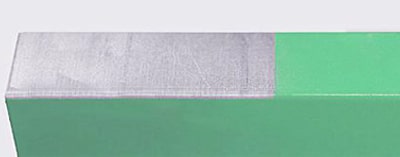

    2) Paint removal of sheet metal parts

    Sample: Sheet metal parts
    Material: carbon steel (with no bottom paint)
    Cleaning efficiency: 900mm2/s
    Cleaning effect: the paint layer is removed cleanly without residue, and the substrate is not damaged

    carbon-steel-paint-removal-of-sheet-metal-parts-rust-removal-machine-in-uae-Surface-Cleaning-and-Polishing-Machines-in-UAE

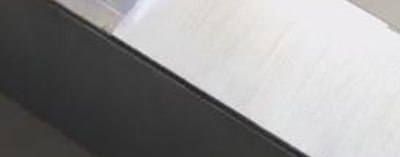

    3) Rust removal of sheet metal parts

    Sample: Sheet metal parts
    Material: carbon steel
    Cleaning efficiency: 900mm2/s

    carbon-steel-rust-removal-of-sheet-metal-parts-laser-cleaning-machines-in-uae-Laser-Cleaning-and-Rust-Removal-Machines-UAE

    4) Alumina board renovation

    Sample: Aluminum alloy
    Material: 6063
    Cleaning efficiency: 900mm2/s
    Cleaning effect: the paint layer is removed cleanly without residue, and the substrate is not damaged

    alumina-board-renovation-laser-cleaning-and-rust-removal-machine-in-uae-Surface-Cleaning-and-Polishing-Machines-in-UAE
