Portable Laser Marking Machine
OVERVIEW

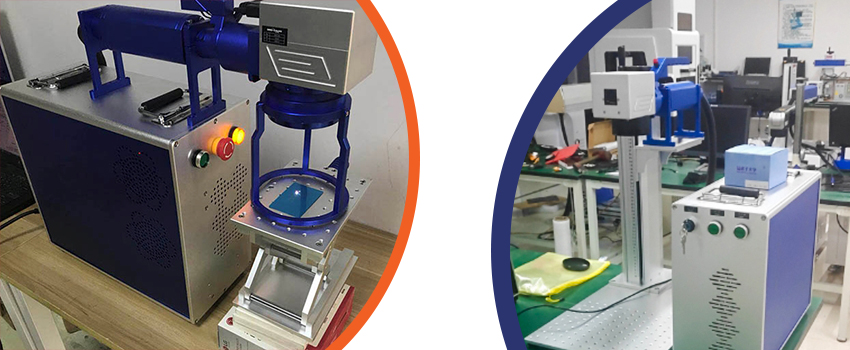

There are two types of hand-held laser marking machine, the configuration is similar

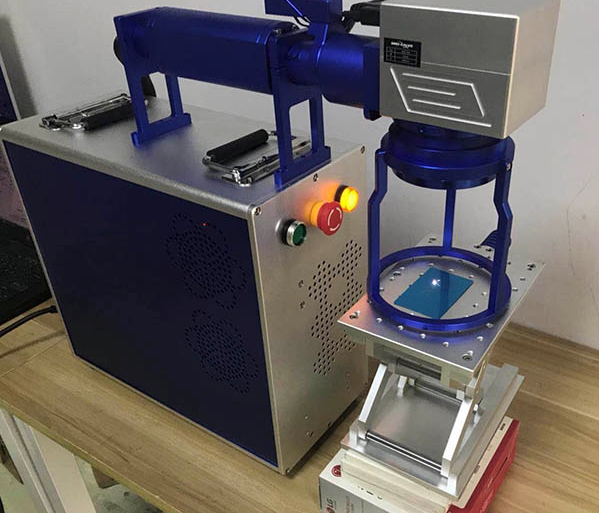

1. Type one hand-held fiber laser marking machine:
- Hand-held portable type
- Working area: 100*100mm
- 20w fiber laser power from JPT
- High quality Lenses and mirror
- Cooling system: air cooling system
- Laptop
- Original BJJCZ control card and EZCAD software,etc
- Package: Strong wooden case
- Delivery Time: 5 to 7 working days after get deposit
- Warranty Time: 2 years
- Weight: 60kg
- Size: 750mmX450mmX700mm
Specification
| POWER: | 20W |
|---|---|
| LASER WAVELENGTH: | 1064nm |
| REPETITION FREQUENCY | 20-80KHZ |
| TEMOO GAUSSIAN BEAM | <2 |
| MARKING RANGE | 110*110mm |
| MARKING DEPTH | ≤0.4mm |
| MARKING SPEED | ≤10000mm/s |
| MINIMUM LINE WIDTH | 0.01mm |
| MINIMUM CHARACTER | 0.15mm |
| REPEAT ACCURACY | ±0.002 |
| POWER SUPPLY | 220V/50Hz |
| POWER CONSUMPTION | 500W |
| DIMENSION | 750mmX450mmX700mm |
| TOTAL WEIGHT | About 100kg |
| OPERATING SYSTEM | Windows XP or Windows 2000 |
| COOLING WAY | Built- in air cooling |
| CONTROL INTERFACE | Standard USB |
| FILE FORMAT | All the characters/ fonts of WINDOWS operating system |
| LASER DEVICE TYPE | Impulse fiber laser device |
2. Type two hand-held fiber laser marking machine:
- Hand-held portable type
- Working area: 100*100mm
- 20w fiber laser power from JPT
- High quality Lenses and mirror
- Cooling system: air cooling system
- Laptop
- Original BJJCZ control card and EZCAD software,etc
- Package: Strong wooden case
- Delivery Time: 5 to 7 working days after get deposit
- Warranty Time: 2 years
- Weight: 60kg
- Size: 750mmX450mmX700mm
Specification
| POWER: | 20W |
|---|---|
| LASER WAVELENGTH: | 1064nm |
| REPETITION FREQUENCY | 20-80KHZ |
| TEMOO GAUSSIAN BEAM | <2 |
| MARKING RANGE | 110*110mm |
| MARKING DEPTH | ≤0.4mm |
| MARKING SPEED | ≤10000mm/s |
| MINIMUM LINE WIDTH | 0.01mm |
| MINIMUM CHARACTER | 0.15mm |
| REPEAT ACCURACY | ±0.002 |
| POWER SUPPLY | 220V/50Hz |
| POWER CONSUMPTION | 500W |
| DIMENSION | 750mmX450mmX700mm |
| TOTAL WEIGHT | About 100kg |
| OPERATING SYSTEM | Windows XP or Windows 2000 |
| COOLING WAY | Built- in air cooling |
| CONTROL INTERFACE | Standard USB |
| FILE FORMAT | All the characters/ fonts of WINDOWS operating system |
| LASER DEVICE TYPE | Impulse fiber laser device |
