Engraving and Dot Peen Marking Machine

Rockwood Machinery has been expertise in delivering durable and high-quality machines for dot peen marking, scribe marking and conventional marking from MARKATOR Germany experts in and around UAE. We meet our customers’ needs individually and precisely by constant dialogue with them and their applications that helps us maintain a continual development, optimization and innovations within our product range. Our marking machines are broadly classified into

• Hand-held marking machines
• Table marking machines

Hand-held marking machines

1. Battery operated hand-held marking machines

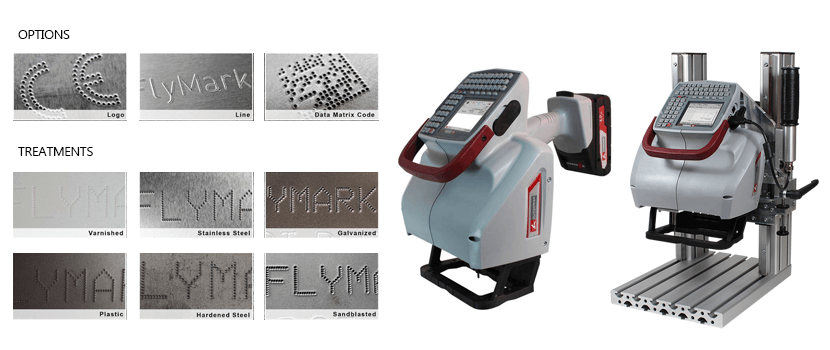

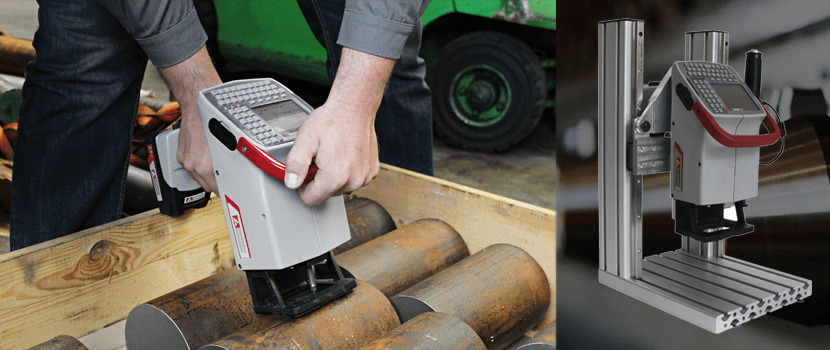

A. FlyMarker® mini 65/30

The Fourth generation of the mobile dot peen marker can be described as a new milestone in the history of the battery operated hand-held marking units.

The new FlyMarker® mini builds on the strengths of the proven previous models and convinces with its light weight and its compact design as well as also due its unique introduction price.

• Weights only 2.4 kg
• Marking area of 65 x 30 can be used completely
• Break-resistant housing out of glass fibre reinforced plastic
• Software is self-explanatory and intuitively to operate
• High-resolution LC-display
• Self-sufficient work due to a powerful Lithium-Ion-Batteries (2 are in standard scope of supply)
• Numeric keys are integrated directly in the keyboard
• Dirt-resistant and easy to operate keypad
• Second handle allows an ergonomic two-hand operation and can be dismounted easily if there is less space
• Practical carrying case for the complete standard scope of supply
• Marking force can be adjusted individually to the material to be marked and to the needed marking depth

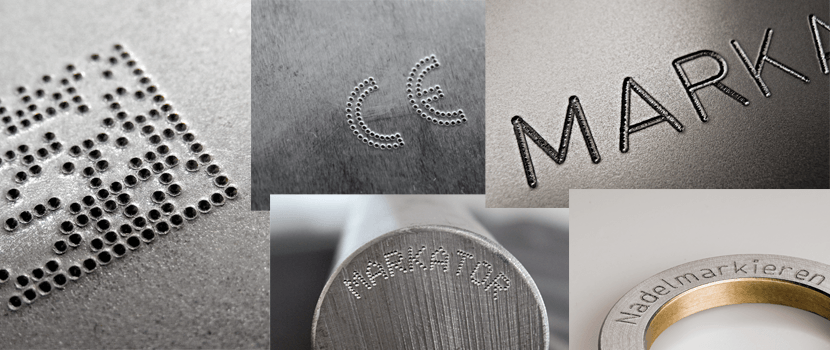

• Characters, numbers, test symbols, logos and Data Matrix Codes can be marked
• Several hundreds of marking files, fonts and logos can be stored in the internal memory
• Integrated USB-interfaces enable a fast data transfer and can also be used for the operation of optional
  accessoires

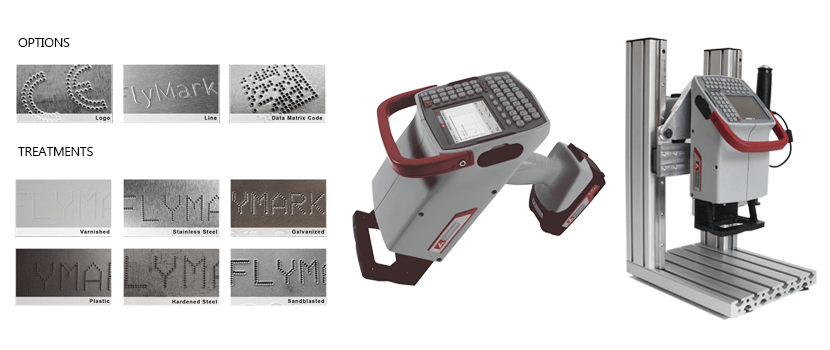

B. FlyMarker® mini 120/45

The mobile dot peen marker FlyMarker® mini 120/45 is already the fifth generation from the product group FlyMarker®.

The long-term experience in manufacturing battery operated hand-held marking systems and the comprehensive knowledge about the customer and market requirements have been consistently integrated in the development of this product.

• Marking area: 120 x 45 mm
• Weight only 3,2 kg
• Extra strong magnet for deep markings (optional)
• 18V Lithium-Ion-Battery
• High quality guidance system for highest stability
• Attractive price-performance ratio
• Integrated control system (All-In-One)
• Integrated, user friendly keyboard. Numeric keys are integrated in the keyboard.
• Illuminated marking area
• Nearly all materials can be marked – from plastics to hardened steel (63HRC)
• Latest processor technologies allow fast navigation
• Break resistant housing made of glass fibre reinforced plastic.
• The additional handle can be dismounted easily when there is less space between work pieces
• Numerous language versions available by default
• Optionally individual company logos, test symbols or Data Matrix Codes can be marked
• Integrated barcode scanner (optional)
• Column frame (optional)

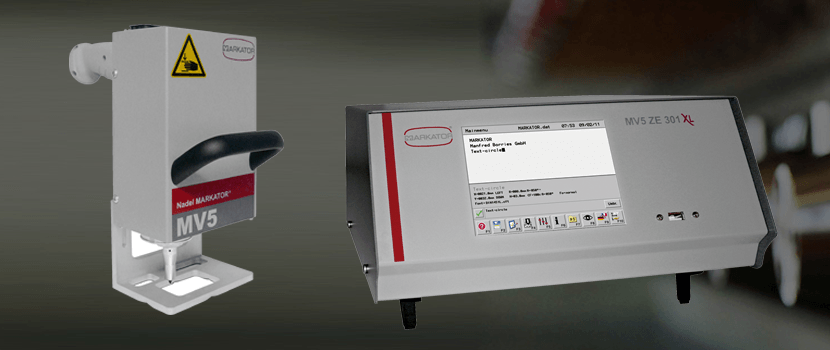

2. Electro-pneumatically driven hand-held marking machines-MV5 M50/M80/M120

Our electro-pneumatically and with this wired hand-held marking machines are particularly suitable when extremely deep markings are required.

Ideal partner for self-independent markings of heavy, bulky and stationary work pieces on site

Very space-saving and handy by compact construction and ergonomic design

High speed marking due to latest control technologies

Low moving masses due to compact design

Solid mechanics with high quality, double guided linear guides in x- and y-direction

Perfect power transmission into the material to be marked

High repeat accuracy

Extremely precise and warp-free marking result

Can be used in any position

Available marking areas:

Marking area (x/y) 50 x 25 mm (MV5 M50/25)

Marking area (x/y) 50 x 45 mm (MV5 M50/45)

Marking area (x/y) 80 x 25 mm (MV5 M80/25)

Marking area (x/y) 80 x 45 mm (MV5 M80/45)

Marking area (x/y) 120 x 25 mm (MV5 M120/25)

Marking area (x/y) 120 x 45 mm (MV5 M120/45)

Table marking machine

Dot peen markers

A durable dot peen marking is generated by a pneumatically driven, oscillating carbide marking pin. The marking pin is moved during the marking process by two carriages into the x and y direction and strikes the material by an up and down movement. Almost all materials can be marked.

1. MV5 T0

Highest stability of the column frame by massive tracks

Fast adjustment of the height by a hand wheel. Four times faster than conventional column frames

Integrated digital height index

Highest marking quality at maximum speed by precise mechanics

Easy operation

Maintenance free mechanics and tools

Highest flexibility by machine expansion with additional components

Available marking areas:

Marking area (x/y) 100 x 100 mm (MV5 T0)

Marking area (x/y) 200 x 100 mm (MV5 T1)

2. FlyMarker® NetMarker

Innovative, network-compatible CNC table marking machine

Marking area (x/y) 100 x 100 mm

Attractive price-performance ratio

The system program is 100% operator prompted. It has a clearly arranged design

and is easy to use

After software installation immediately ready for operation

Operation in a company network by Ethernet connection

Marking preview, changings of position and marking text possible

Exact positioning of the marking pin in x and y direction by a helpful viewing window

Extension with a lot of accessories

Maintenance-free

3. FlyMarker® PRO STATION

Compact table marking system with electromagnetic driven marking pin

Marking area (x/y) 75 x 25 mm, 75 x 45 mm,

120 x 25 mm or 120 x 45 mm

Alternatively all versions of the FlyMarker PRO are available in the touch version

High resolution LC-colour display and control unit in break-proof housing

Integrated keyboard

Interfaces: USB-A, USB-B and Ethernet

High quality, double guided linear guides for precise marking results

Latest software technology

Marking preview to check the marking file before the marking process

Axial-, radial- and circle marking and marking of Data Matrix Codes

Internal memory for several hundred marking files, fonts and logos

Different marking forces can be chosen

Extremely deep markings possible due to optional available magnet

Illuminated marking area

No external control unit necessary.
