OVERVIEW
Chamfering & Plate Bevelling Machines in UAE

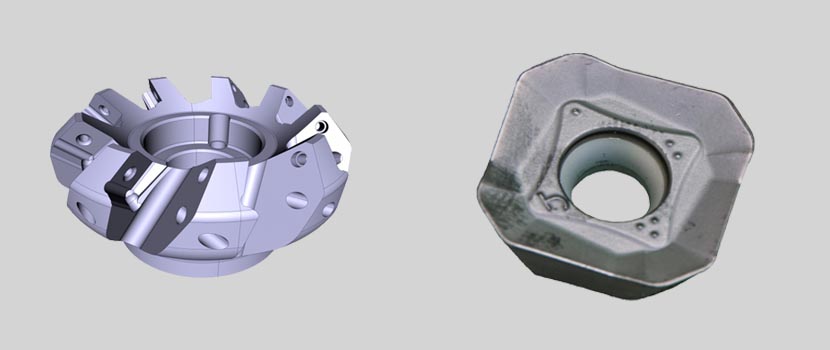

We at Rockwood, delivers highly efficient bevelling systems with premium quality and favorable price. Chamfering & plate bevelling machines from N.KO MACHINES brings an innovative and revolutionary solution in the sphere of bevelling systems. We supply a wide range of Chamfering & Plate Bevelling Machines in UAE characterized by standard carbide cutting inserts, easy handling, and safe working environment. The Chamfering & plate bevelling machines from N.KO MACHINES are:
| MODEL : UZ50 TRIUMPH |
| Automatic feeding |
| Maximum bevel width: 50mm |
| Bevel angle: 15°-60° |
| Material thickness: 7-80mm |
| MODEL : UZ18 HARDWORKER |
| Automatic feeding |
| Maximum bevel width: 0,70″ / 18mm |
| Bevel angle: infinitely variable 15-50° |
| Material thickness: from 0,2″ to 1,6″ / 5 to 40 mm |
| Resistant worm gearbox |
| MODEL : UZ15 RAPID |
| Automatic feeding |
| Maximum bevel width: 15mm |
| Bevel angle: 15-50° |
| Material thickness: 6-40mm |
| MODEL : UZ12 ULTRALIGHT |
| Automatic feeding |
| Maximum bevel width: 12mm |
| Bevel angle: 22,5°;30°; 37;5°;45°;50° |
| Material thickness: 3-35mm |
