Pug Cutting Machines
OVERVIEW
Portable Pug Cutting Machines in UAE

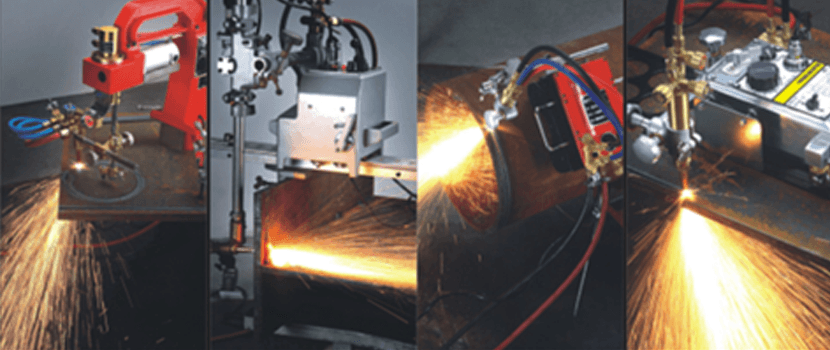

Portable Pug Cutting Machines in UAE is widely used by heavy-duty Fabricators which includes gas cutting machine and it helps to reduce production costs and thus improves the efficiency of work. RockWoods’ high-quality Pug Cutting Machines and are designed to do the work with 100% precision. We have a wide range of Portable Pug Cutting Machines for straight-line cutting of Plates, Pipes, to cut the Beam.

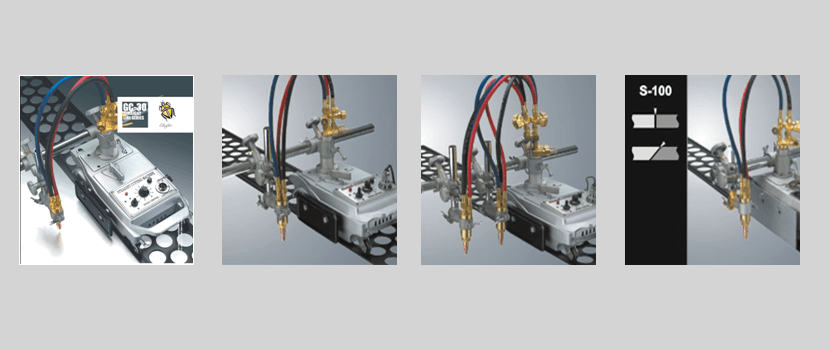

For Plates
| Model No | Over all Dimension | Cutting Thinkness (mm) | Cutting Speed (mm/min) | Cutting Circle | Torch Number | Weight(kg) |
| Chafer | 470 x 230 x 240 | 6-100 | 50-750 | 200-2000 | 1 | 16 |
| Chafer II | 470 x 230 x 240 | 6-100 | 50-750 | 200-2000 | 2 | 21 |
| Multi-torch Chafer Economic Portable cutting machine | ||||||
| Chafer III | 470 x 230 x 240 | 6-50 mm | 50-750 | 70-1000 | 3 | 35 |
| Chafer IV | 470 x 230 x 240 | 6-50 mm | 50-750 | 70-1000 | 4 | 40 |
| Chafer V | 470 x 230 x 240 | 6-50 mm | 50-750 | 70-1000 | 5 | 50 |

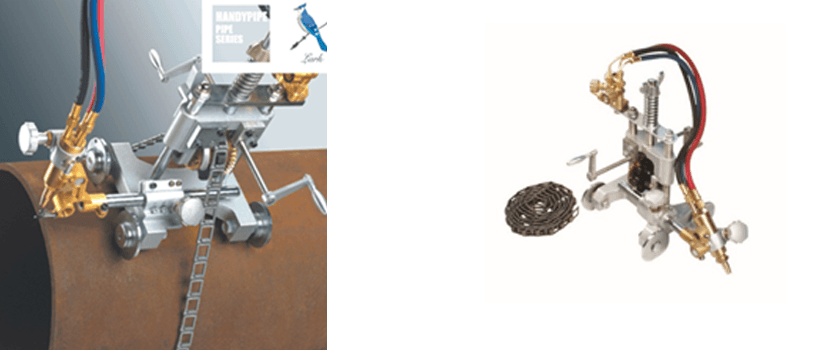

For Pipes: Manual and Auto Pipe Cutting Machine
| Technical Specification | ||
| Specifications | Q-Lark | Q-Lark |
| Chain type | Single link chain | Single link chain |
| Quick clutch | None (Same as Kolke type) | With |
| Effective pipe diameter |
114-600mm (4"~24") by standard chain (2.4m=96") Over 600mm by extra chain addition |
114~600mm (4"~24") byy standard chain (2.4m=96") Over 600mm by extra chain addition |
| Cutting thickness | Up to 50mm (2") | Up to 50mm (2") |
| Cutting shape | Square and bevel (up to 45") | Square and bevel (up to 45") |
| Drive method | Manual | Manual |
| Size | 250X250X400 | 280X280X450 |
| Weight | 10.5kg | 13kg |
Technical Specification
| Chain Type | Single link chain |
| Quick release clutch | With |
| Cutting speed | 50-1150mm/min |
| Effective pipe diameter |
150~600mm by standard chain Larger size over 600mm by extra chain |
| Cutting thickness | Up to 50mm |
| Cutting Shape | square and bevel(up to 45") |
| Drive method | Motorized |
| Main size (mm) | 265X420X450 |
| Weight (kg) | 16 |
Beam Cutting Machine
| Technical Specification | ||
| Web cutting | Flange cutting | |
| Cutting capacity | 5-60mm | |
| Cutting speed | 100-700mm/min(4-28ipm) | |
| Cutting dimensions | See above | |
| Total weight | 29kg(KC-2H),38kg (KC-2HL) | |
| Power | 110V/220V,50HZ/60HZ | |
| Main body size(mm) |
250X176X260Z for KC-2H 400X340X440X for KC-2HL |
|
| Speed controll | S.C.R | |
| Drive | Friction roller | Rack and pinion |
| Rail | 1,500mm (KC-2H) 2,200mm (KC-2HL) | |
| Attaching Device | Clamping bolts | |
Outside Plate Profile Cutting Machine
Technical Specification
| Model | GC2-150/150R | GC2-150A | GC2-150T |
| Rectangle Cutting area |
400X900mm 450X750mm |
340X1700mm 500X1650mm |
400X900mm 450X750Mm |
| Template position | Mounted on template holder |
Mounted on template holder or Central Shaft |
Mounted on template holder |
| Square cutting area | 500X500mm | 1270X1270mm | 500X500mm |
| Circle cuttingg area | 20-600 | 20-1800 | 20-600 |
| Max. cutting length | 1200mm | 1650mm | 1200mm |
| Max. cutting thikness | 100mm | 100mm | 200mm |
| Cutting speed with 12.7mm tracer | 100 to 750mm/min | ||
| Control | S.C.R Control | ||
| Torch | Injector Type to suit Acetylene/LPG | ||
| Gross weight | 57/62kg | 62kg | 59kg |
| Dimensions(mm) | 1190X335X800/870 | 1390X335X800 | 1190X335X1000 |
